Direct Type Three Phase Ethernet Modbus TCP Energy Meter
For data center metering, and more.
Max.100A Direct Load
Work with 3P4W/3P3W/1P2W
4 Module 72mm wide
Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,
Bi-directional measurement
Ethernet TCP communication

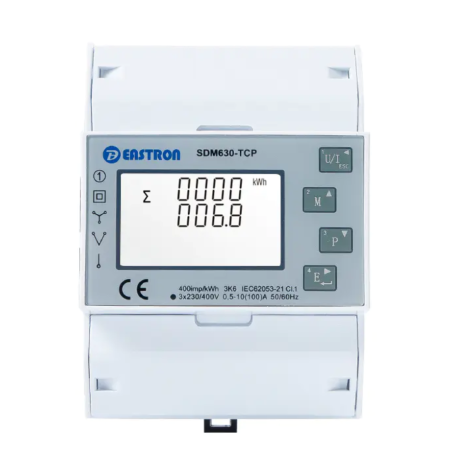

SDM630-TCP is Direct Type Three Phase Ethernet Modbus TCP Energy Meter
The meter can work with 1p2w, 3p3w, 3p4w electricity grid. It provides all important electrical parameters: voltage, current, power, PF, THD, frequency, demand, energy etc. The meter supports max.100A direct connection, saving the cost and avoiding the trouble to connect external CTs, giving the unit a cost-effective and easy operation.
It is equipped with a Ethernet communication port and MODBUS-TCP protocol is adopted for remote reading and programming.
Specifications
- 100A direct load
- Multi-parameters measurement
- Plug-in solution
- LCD with white backlit, adjustable backlit time
Measurements:
- Phase voltage: V1, V2, V3
- Line voltage: V1-2, V2-3, V3-1
- Current: I1, I2, I3
- Active power: P1, P2, P3, P_total (total active power)
- Reactive power: Q1, Q2, Q3, Q_total (total reactive power)
- Apparent power: S1, S2, S3, S_Total (total apparent power)
- Frequency: Hz
- Power factor: PF
- Active energy: Ep_imp (import active energy), Ep_exp (export active energy), Ep_total (total active energy)
- Reactive energy: Eq_imp (import reactive energy), Eq_exp (export reactive energy), Eq_total (total reactiveenergy)
- THD-I and THD-U
- Maximum demand: MD
Setup:
- Ethernet setup
- Demand Interval Time
- Backlit time
- Supply system 1p2w, 3p3w,3p4w
- Reset
- Password modification
