LoRa WAN Gateway with (4G) LTE, RAK7268CV2

01-085

Product description

The software may need to be updated for the gateway to work as intended for E-logger, we offer the service, contact us at info@webiq.se or call us at 070-6798263 for a quote.

WisGate Edge Lite 2 version 2 (RAK7268CV2) is the latest RAK indoor gateway for LoRaWAN with built in Mobile modem for transferring data to your server without access to a fixed internet connection.

Can be used in combination with www.energibutiken.se SDM530 LoRa WAN electricity meter for remote reading of electricity meters with a range of up to 1.5 km.

In our web service e-logger.se you can see the consumption of each individual electricity meter, they can also be linked to specific individual customers.

SEK 4,175.00
Tax included
Quantity
In Stock (1 in stock)

Description

Product description

The software may need to be updated for the gateway to work as intended for E-logger, we offer the service, contact us at info@webiq.se or call us at 070-6798263 for a quote.

This product is compatible with E-logger. In our web service E-logger.se you can remotely read and compile meter readings from all types of consumption meters, both wirelessly via LoRaWAN and wired via Modbus RTU, Modbus TCP, M-bus and HAN.

READ MORE ABOUT E-LOGGER.SE, SETTINGS AND THE CLOUD SERVICE HERE.

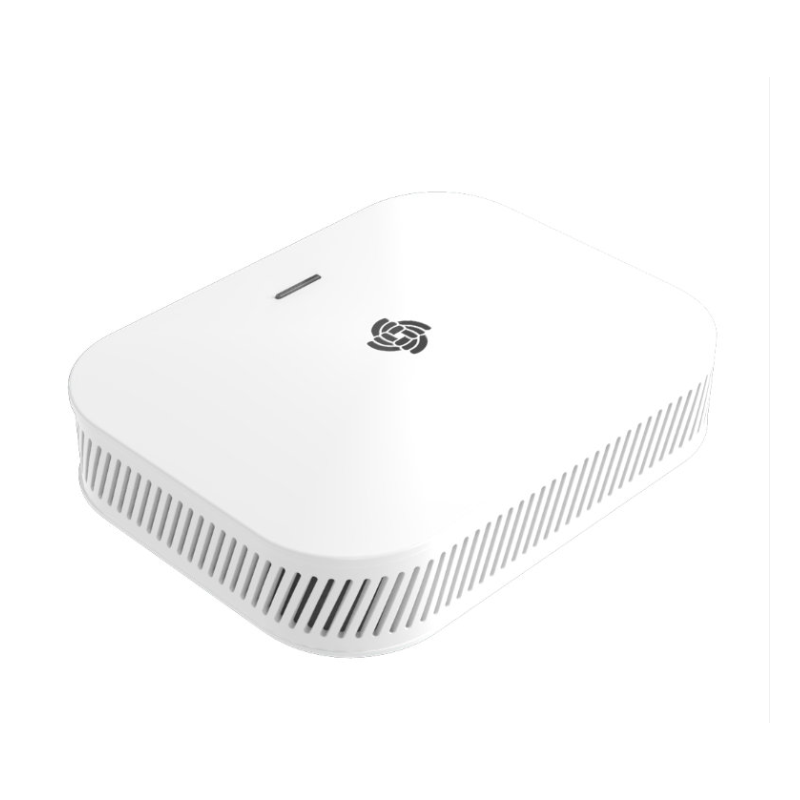

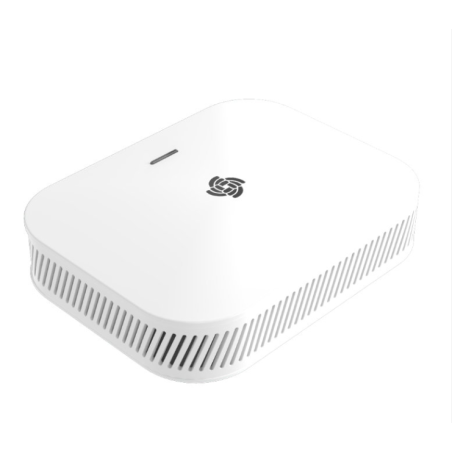

WisGate Edge Lite 2 version 2 (RAK7268CV2) is the latest RAK indoor gateway for LoRaWAN with built in 4G-modem.

It comes with the latest WisGateOS 2, providing all the existing features of WisGateOS but adding many options and tooltips. It comes with add-on capabilities to add and manage extra features to suit your needs.

The gateway supports 8 LoRa channels, multiple backhaul options with Ethernet, Wi-Fi and cellular connectivity. A breathing light LED that helps to visually identify work status.

This product provides a stable experience right out of the box for quick deployment.

The RAK7268CV2 is suitable for all deployment scenarios, be it rapid deployment or customisation of interfaces and functionality.

The gateway can be managed remotely using the WisDM platform.

It is an ideal product for smart buildings, smart offices, smart factories and much more.

Product features

Hardware:

  • 8 LoRa channels
  • Support for 2.4 GHz Wi-Fi AP for configuration
  • 100M Base-T Ethernet with PoE
  • 12V DC power supply
  • RP-SMA LoRa antenna connection
  • Multilateral connectivity with Ethernet, Wi-Fi, and cellular (4G) modem (RAK7268CV2)
  • SD card for log backup and buffering of LoRa frames (in case of backhaul transition)

Indicator for visual monitoring of status

Software

  • WisGateOS 2
  • Additional options
  • Built-in network server
  • LoRaWAN 1.0.3 (LoRaWAN 1.0.4 for embedded server coming soon)
  • Basics Station and Packet forwarder
  • Filtering of LoRa frames (whitelisted nodes)
  • MQTT v3.1 bridge with TLS encryption (compatible with ChirpStack LNS)
  • Buffering of LoRa frames in Packet Forwarder mode in case of NS failure (no data loss).

The package includes

  • 1 pc Gateway
  • 1 pc LoRa antenna
  • 1 pc Power supply
  • 1 pc Mounting kit
Product Details
01-085
1 Item
Attachments
Download
RAK7268V2_7268CV2 manual

RAK7268V2_7268CV2 quick start guide

Download (4.51MB)
